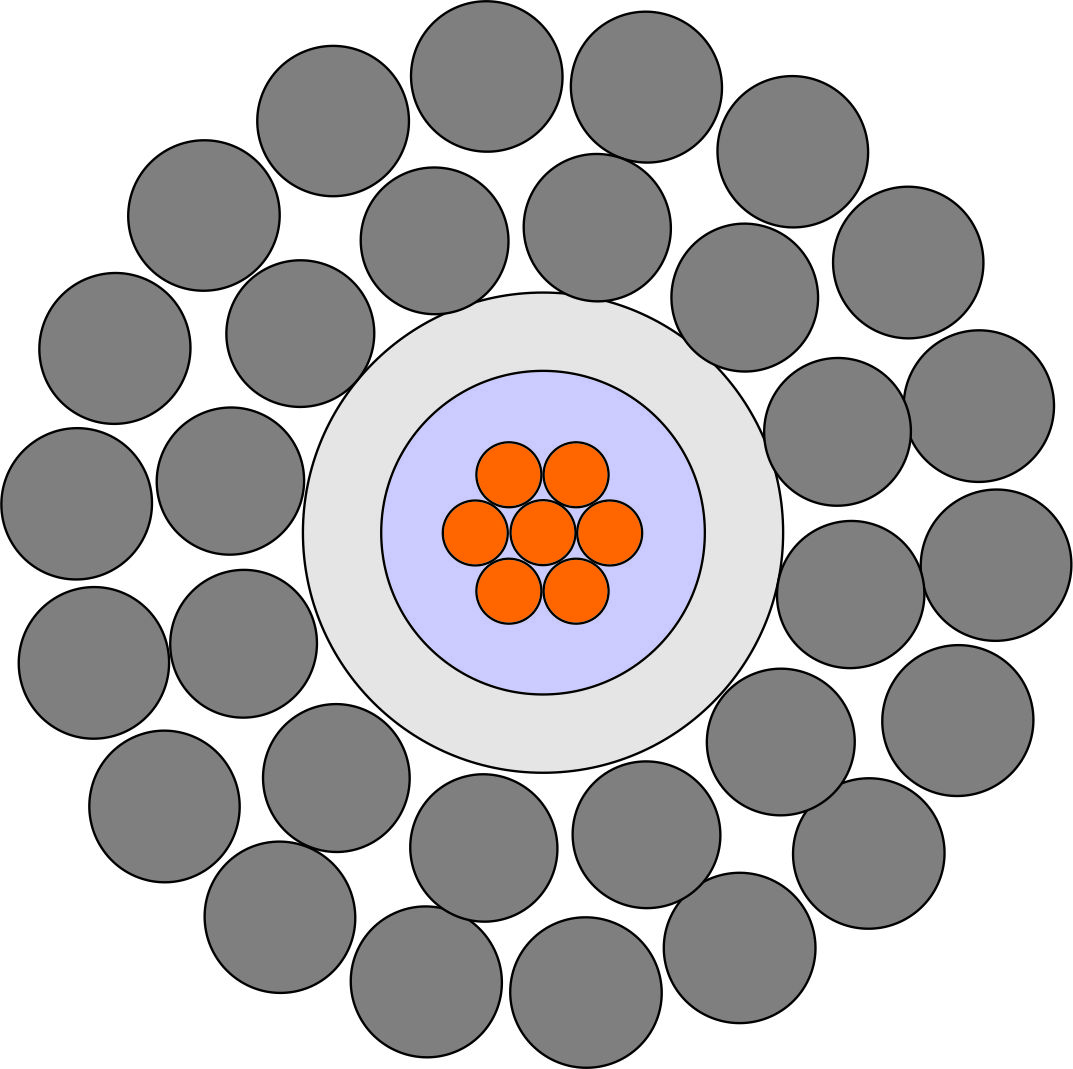

STRUCTURE
| Conductor | 7×0.20 mm | 7×0.0079″ |
| PP Insulation | 1.71 mm | 0.0673″ |
| Inner Armor | 12×0.47 mm (324N) | 12×0.0185″(73lbs) |
| Outer Armor | 18×0.47 mm (324N) | 18×0.0185″(73lbs) |
PROPERTIES-PHYSICAL
| Cable Diameter | 3.50mm±0.10mm | 0.138″±0.004″ |
| Cable Weight in the Air | 45 kg/km | 30 lbs/kft |
| Temperature Rating | -30～+150℃ | 300℉ |
PROPERTIES-MECHANICAL
| Cable Breaking Strength | 8 kN | 1800 lbs |
| Sheave Diameter | 190 mm | 7.5" |
| Cable Stretch Coefficient | 7.3 m/km/5kN | 6.5 ft/kft/klbs |
PROPERTIES-ELECTRICAL
| Maximum Conductor Voltage | 1000 VDC | 1000 VDC |
| Insulation Resistance at 20℃ | 500 MΩ·km | 1640 MΩ·kft |
| DC Resistance at 20℃ | 84.3 Ω/km | 22.9 Ω/kft |
| Capacity Typical | 140 pf/m | 43 pf/ft |
Conductor strand consists of a total of 7 copper wires.
The armor wires are high tensile and galvanized.
No splices of any conductor are allowed in mechanical wireline.
