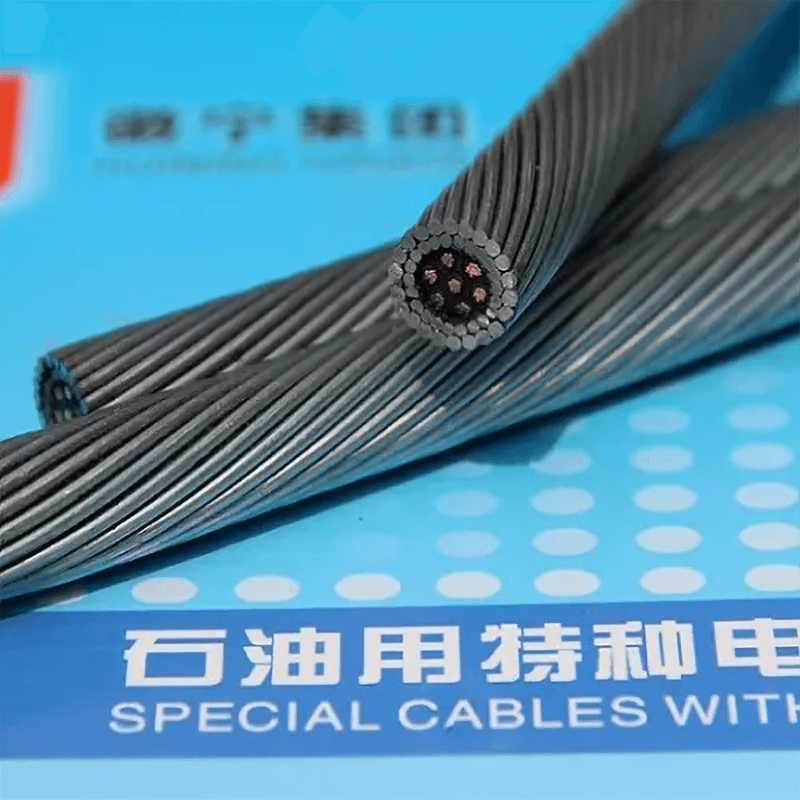

W7FPP-11.80mm 7-conductor FEP Insulated 2 Layers of Galvanized STA 15/32" High Temperature Logging Cable
Key attributes
Industry-specific attributes
Conductor Material | Copper |
nsulation Material | FeP |
Number of Conductors | 7 |
Other attributes
Place of Origin | Anhui,China |
Brand Name | Huining |
Model Number | W7FPP-11.80 |
Jacket | Semi-conductive tape |
Application | ogging,perforating,coring in oil and gas wells |
Product name | Logging cable |
Number of Conductors | 7 Core |
Size | 0.56 mm2 |
Voltage | 1200V |
Application | Oil and gas field |
Conductor Material | Multi strand copper wire |
Cer tification | API Q1 |
Standard | Q/SY 6600 |
Brand name | Huining |
Place of origin | China,Anhu |
W7FPP-11.80mm(7-conductor 15/32") | ||

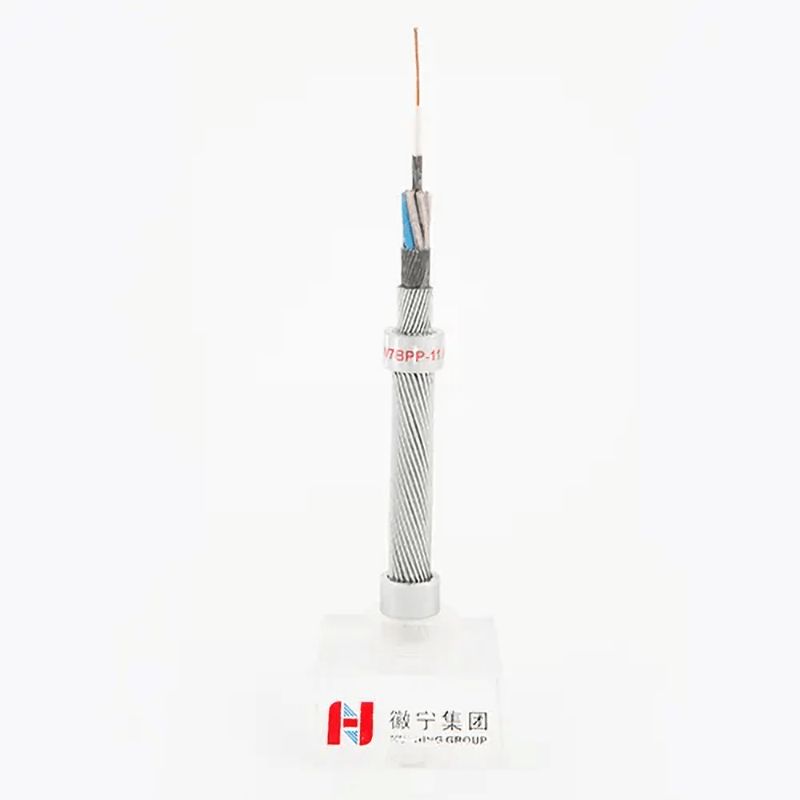

STRUCTURE | ||
Gonductor | 7×0.325 mm | 7×0.0126" |
FEP Insulation | 2.48 mm | 0.0976" |
nner Armor | 24×1.00 mm(1467N | 24×0.0394"(329lbs) |
Outer Armor | 24×1.26 mm[2330N | 24×0.0496"(523Ibs) |
PHYSICAL | ||
Cable Diameter | 11.80mm±0.10mm | 0.464"±0.004" |
Cable Weight in the Air | 509 kg/km | 341 lbs/kft |
Temperature Rating | -50～+232C | 450FF |
MECHANICAL | ||
Cable Breaking Strength | 85 kN | 19000 Ibs |
Sheave Diameter | 504 mm | 19.8" |
Cable Stretch Goefficient | 0.8m/km/5kN | 0.71 ft/kft/klbs |
ELECTRICAL | ||
Maximum Gonductor Voltage | 1200 VDC | 1200 VDC |
nsulation Resistance at 20℃ | 15000 MQ ·km | 50000 MQ ·kft |
DG Resistance at 20℃ | 33Q/km | 10 Q/kft |
Capacity Typical | 130pf/m | 40 pf/ft |
Electrostatic Shield Balance | 30mV | 30mV |
Packaging：
Material:

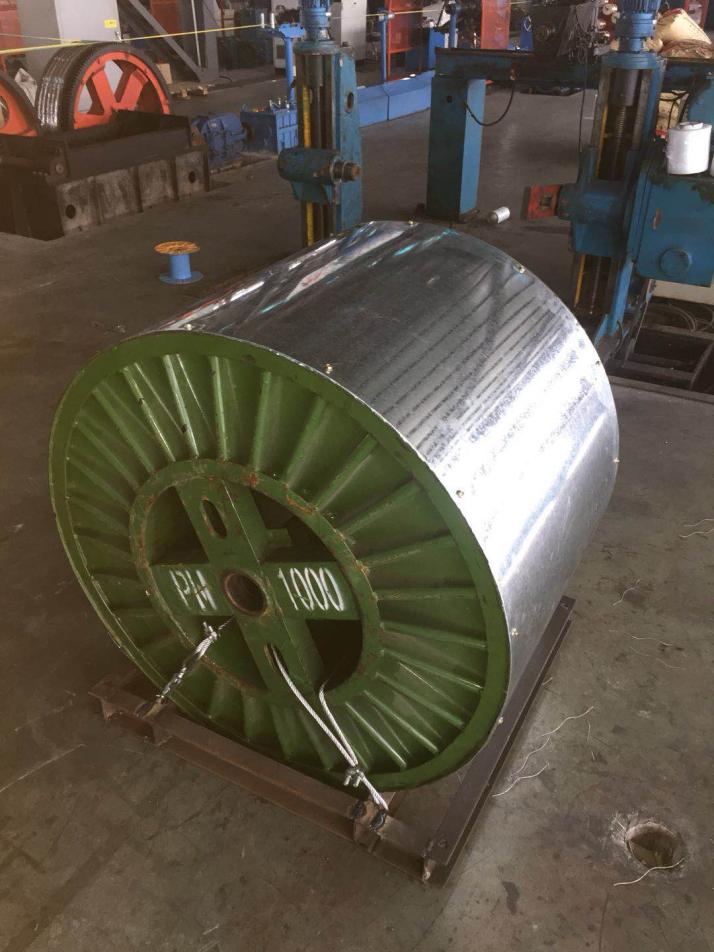

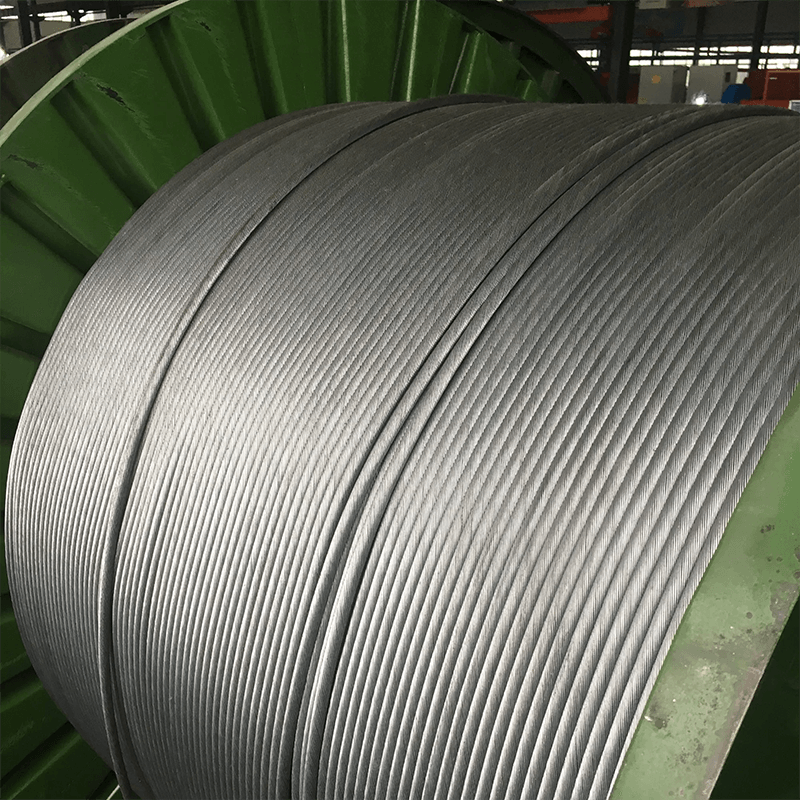

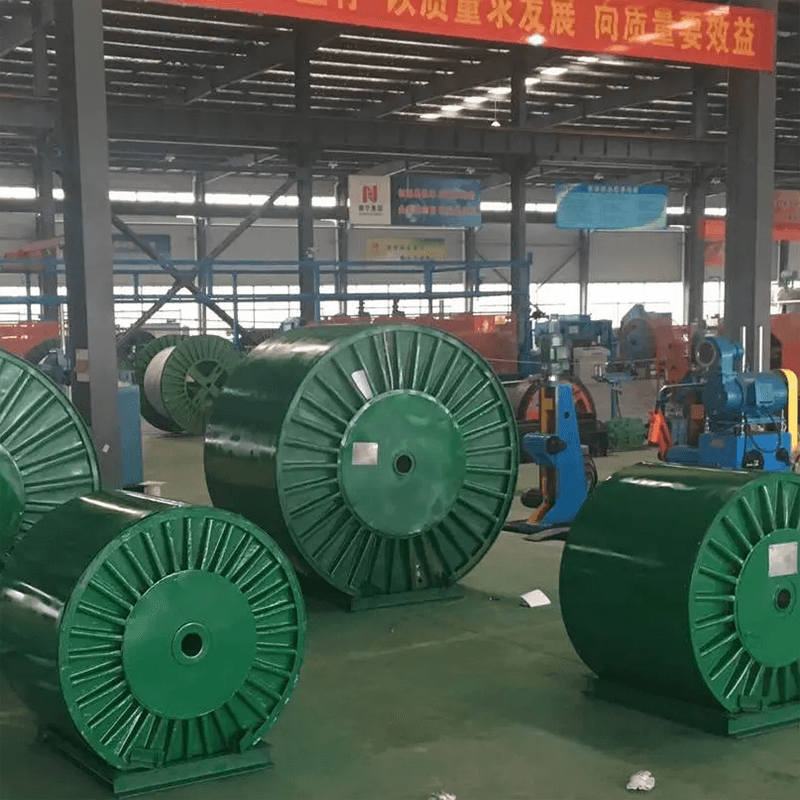

Steel drum (corrugated)
Cable length in each drum: not exceed 8000m.
Drum size:
As per cable length.
