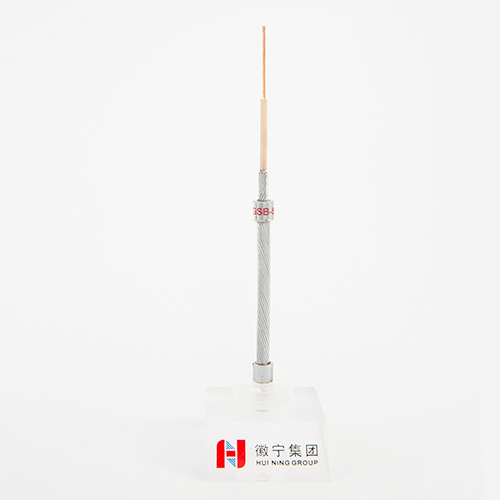

STRUCTURE

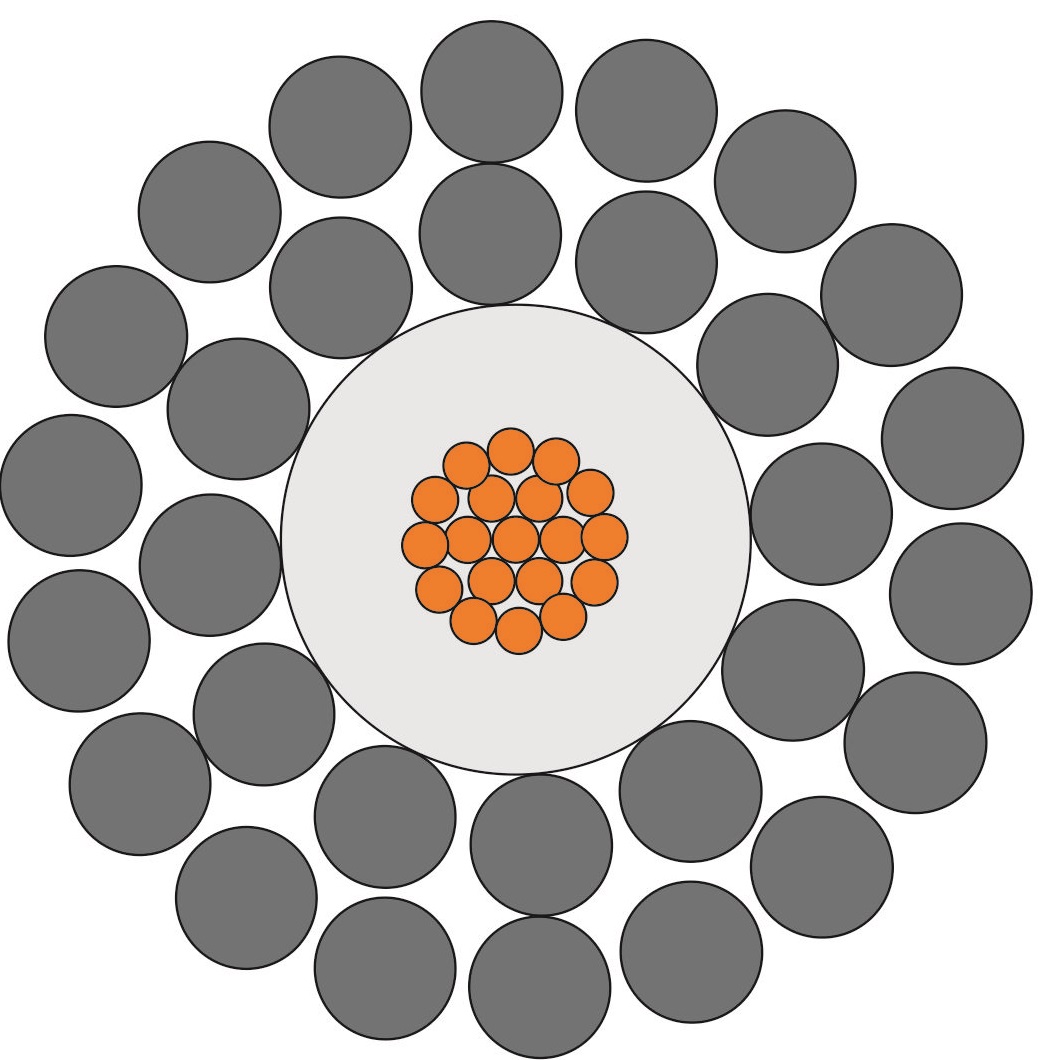

| Conductor | 19×0.30 mm | 19x0.0118″ |
| Insulation | 3.13 mm | 0.1232″ |
| Inner Armor | 12×0.91 mm (1217N) | 12×0.0358″(273lbs) |
| Outer Armor | 18×0.91 mm (1217N) | 18×0.0358″(273lbs) |
| Cable Diameter | 6.55mm±0.10mm | 0.258″±0.004″ |
PROPERTIES-MECHANICAL
| Cable Breaking Strength | 32.5 kN | 7300 lbs |
| Sheave Diameter | 364 mm | 14.3" |
| Cable Stretch Coefficient | 2.13 m/km/5kN | 1.9 ft/kft/klbs
|
PROPERTIES-ELECTRICAL
| Maximum Conductor Voltage | 1200 VDC | 1200 VDC |
| Insulation Resistance at 20℃ | 1500 MΩ·km | 50000 MΩ·kft |
| DC Resistance at 20℃ | 13.5 Ω/km | 4.1 Ω/kft |
OTHER PROPERTIES
| Cable Type | Insulation | Cable Weight in the Air | Temperature Rating (1hr. Max.) | Capacity Typical |
| WGSB-6.55mm | Poly | 180 kg/km | 121 lbs/kft | 150℃ | 300℉ | 164 pf/m | 50 pf/ft |
| WGSF-6.55mm | FEP/ETFE | 186 kg/km | 125 lbs/kft | 260℃ | 500℉ | 174 pf/m | 53 pf/ft |
Note:
Conductor strand consists of a total of 19 copper wires.
The armor wires are high tensile and galvanized.
No splices of any conductor are allowed in mechanical wireline.
