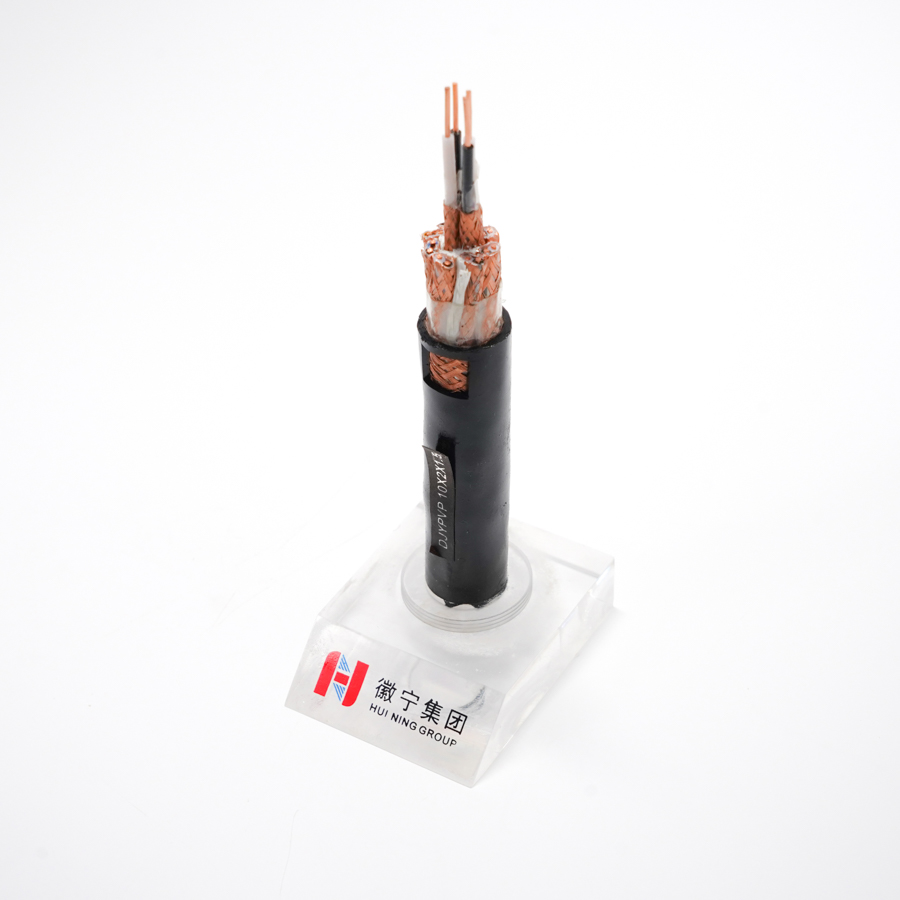

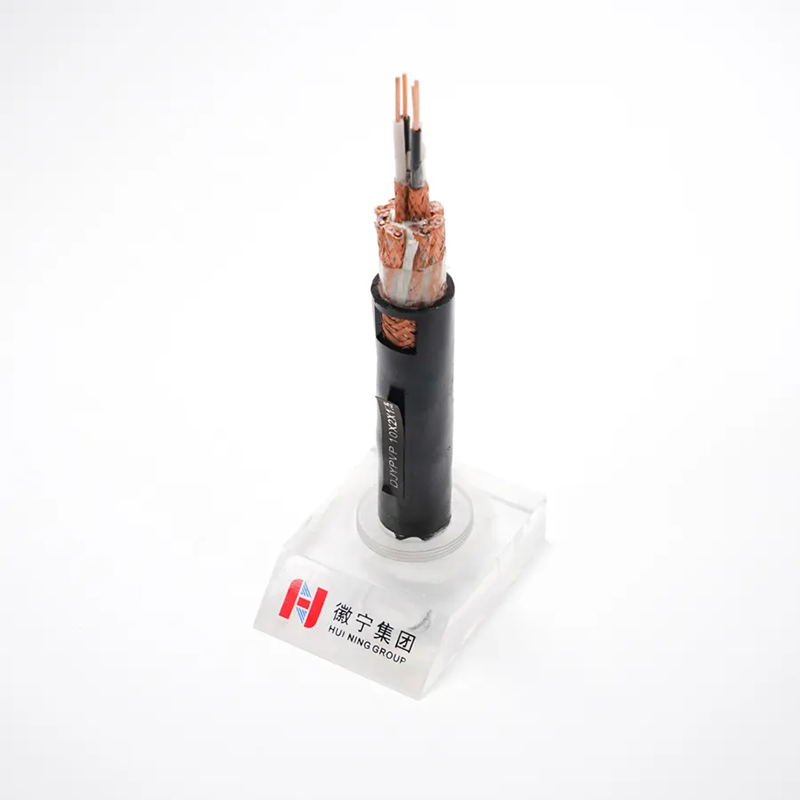

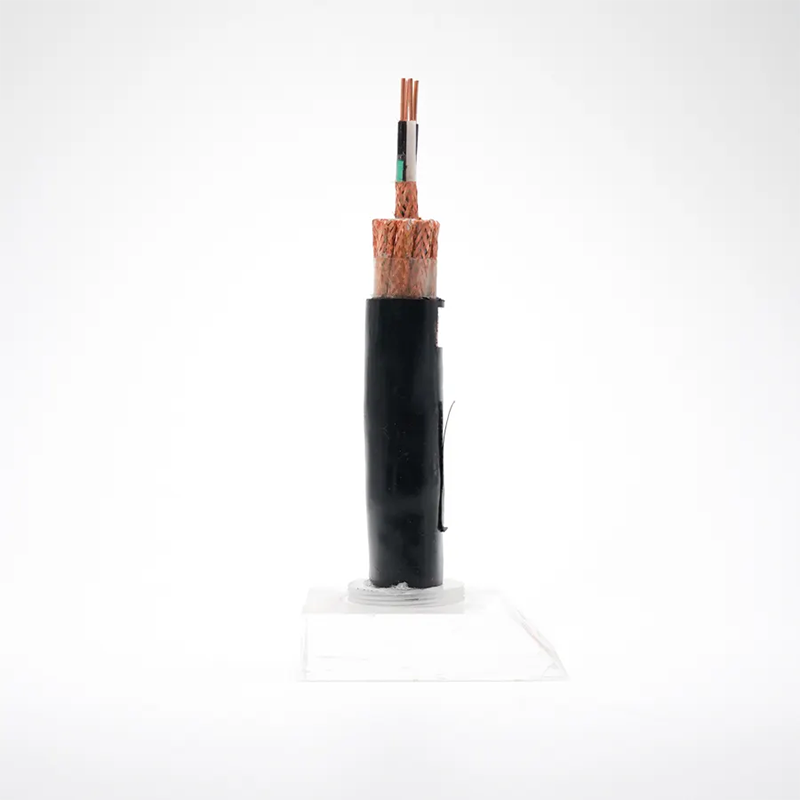

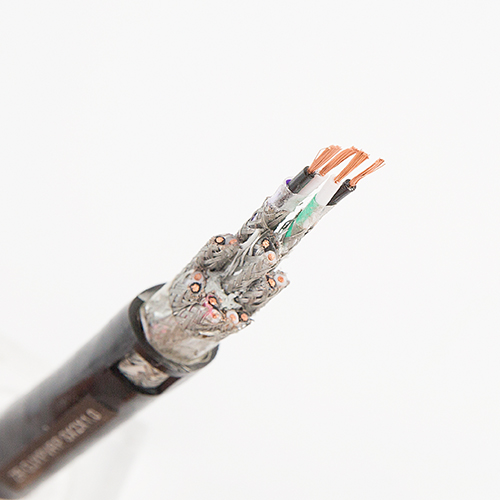

Soft Conductor 10 Pair Multi Pair1.5mm 16awg 500m Copper Braiding Instrument Cable for Computer
Key attributes
Industry-specific attributes
Conductor Material | Copper |
Insulation Material | PE |
Number of Conductors | 2*1.5 |
Other attributes
Place of Origin | Anhui,China |
Brand Name | Huining |

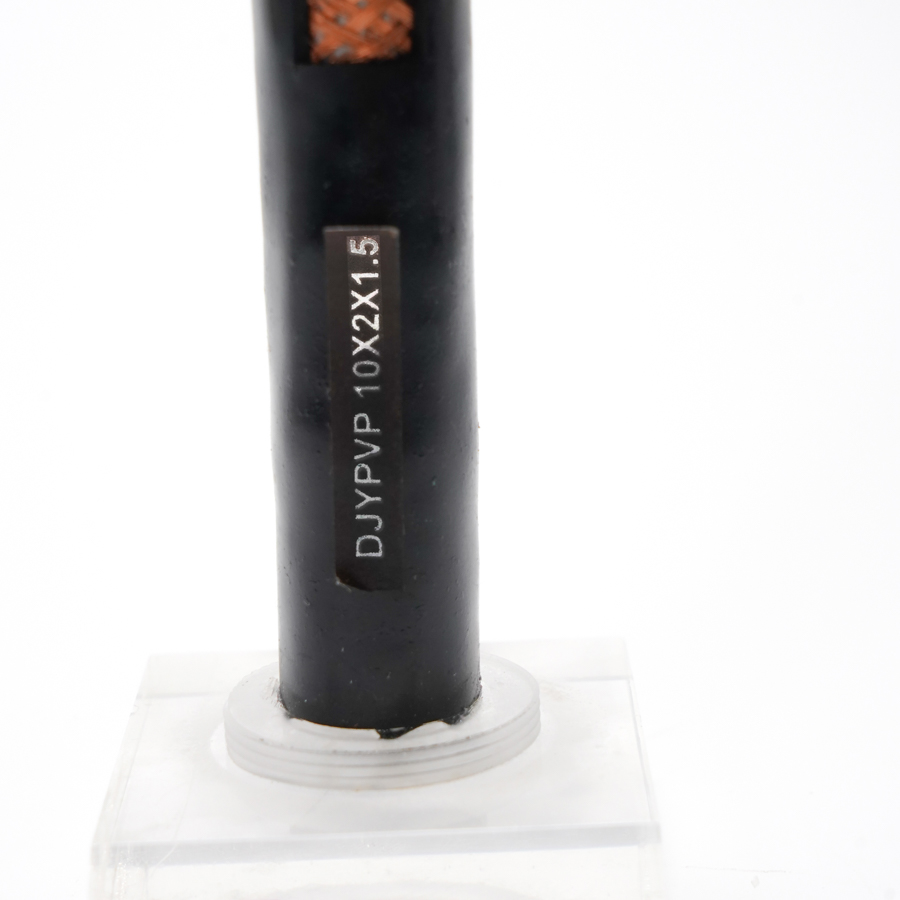

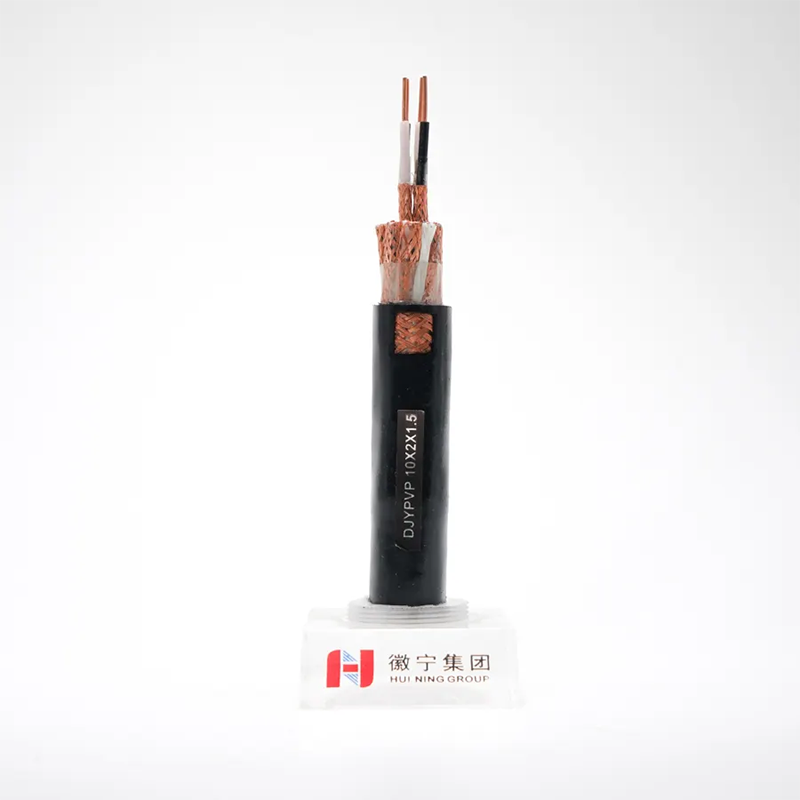

Model Number | DJYPVP 10*2*1.5 |
Jacket | PVC |
Application | nstrumentation cable,signal cable |
Color | Customer's Required |
Product name | Computer cable |
Type | Insulated |
Material | COPPER+PE+PVC |
Rated Voltage | 300/500V |
Cer tification | CE Certificate |
nsulation | Polyolefin Insulation |
Cores | 2*1.5 cores |
Standard | EN50525-1:2011 |
Conductor | copper conductor |

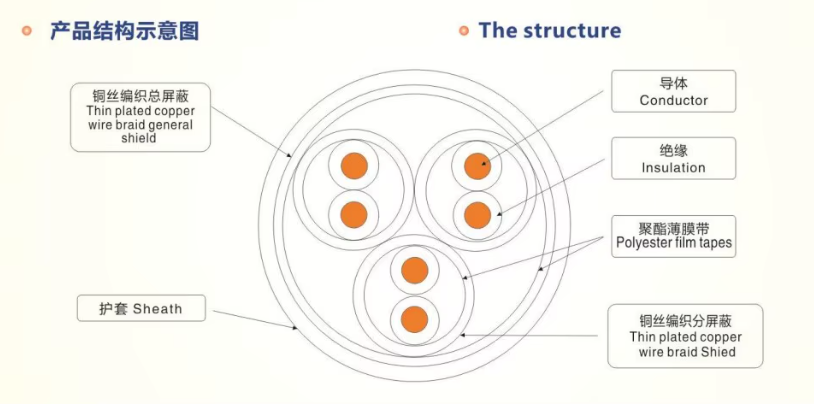

Model &Type | Specification | Voltage | Gonductor |
DJYPVP | 10*2*1.5 | 300/500V | Annealed copper |
Insulation | Screen?Shield | Armor | Sheath |
PE | copper wire braid individual and | PVG |
Packaging:
Material:
Wooden drum (fumigation)
Cable length in each drum: 500m/1000m or as per actual cable length requirements.
Drum size:
As per cable length and container size.
