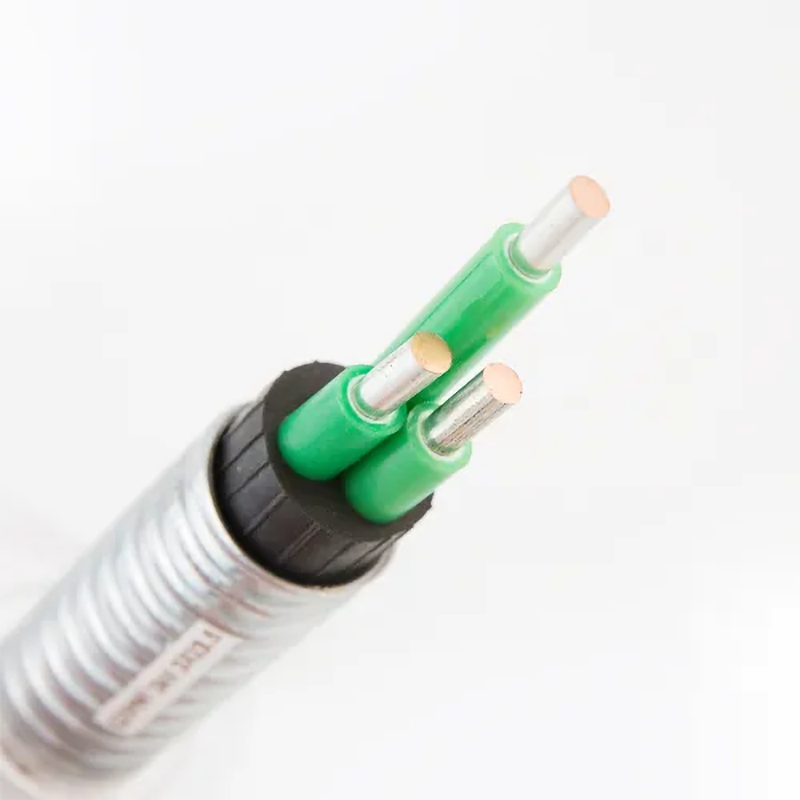

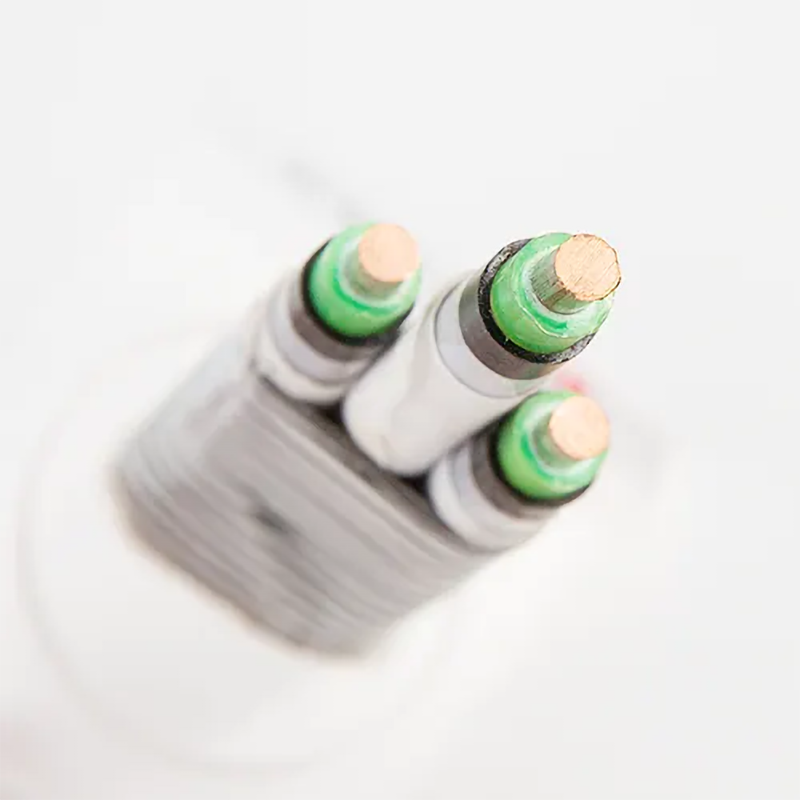

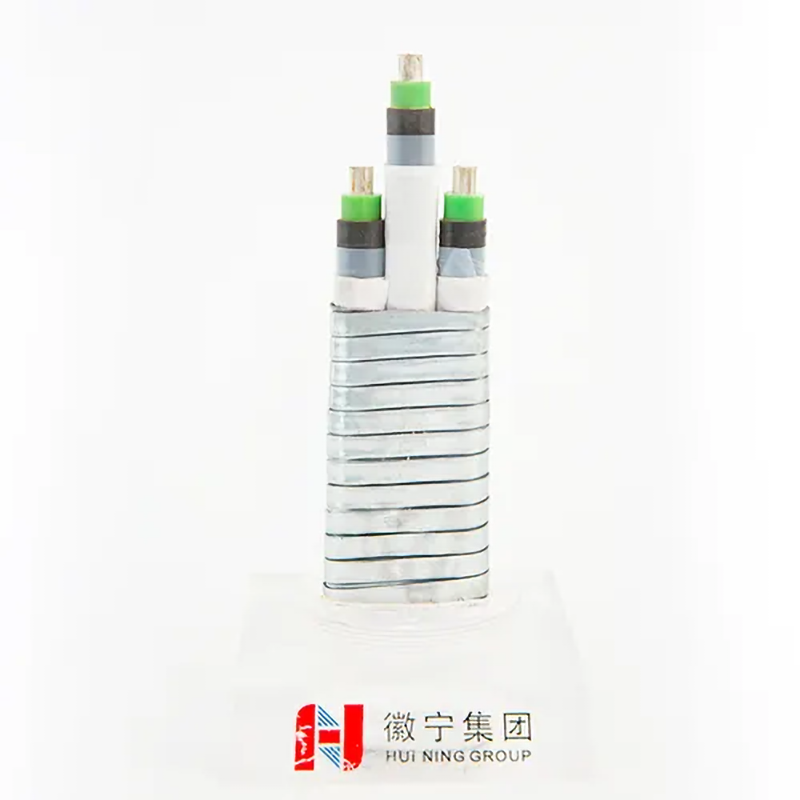

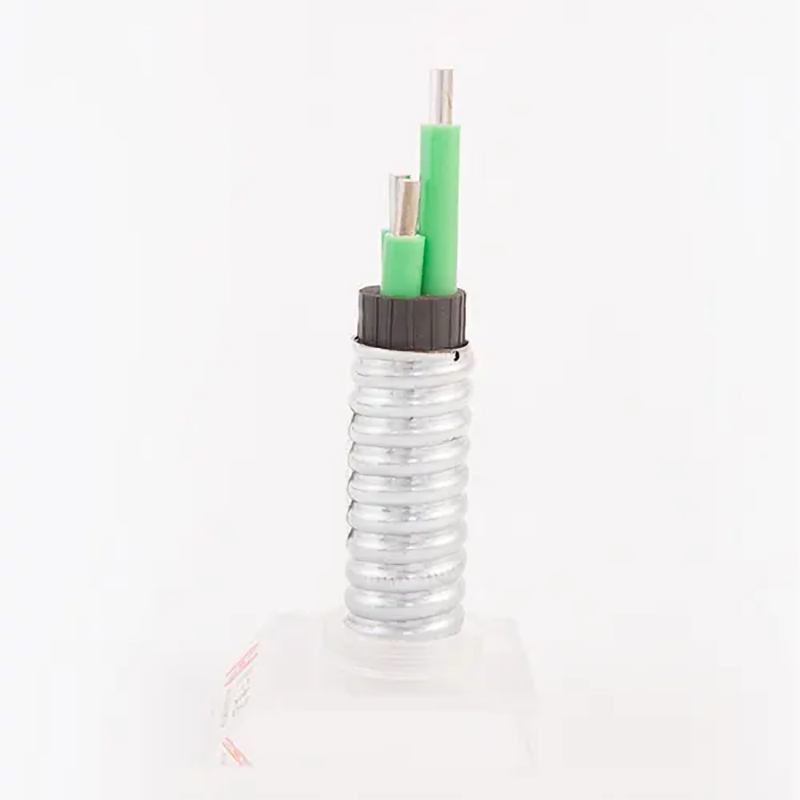

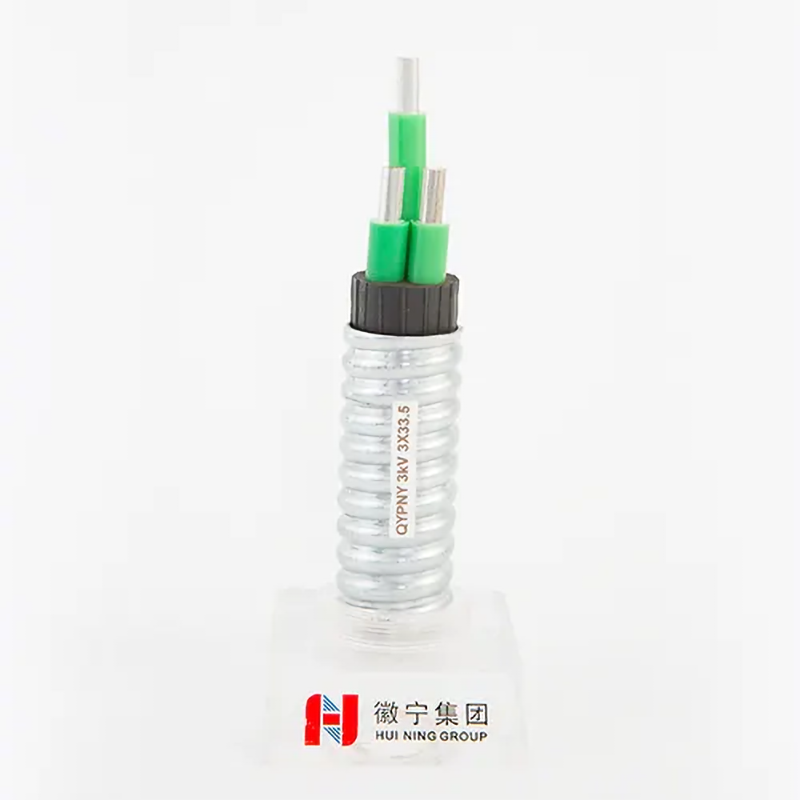

Electrical Submersible Pump Cable Polyimide/EPR Insulation Lead/NBR Sheath Galvanized STA Cable
Key attributes
Industry-specific attributes
Conductor Material | Copper |
nsulation Material | Polyimide/EPR |
Number of Conductors | 3 |
Other attributes
Place of Origin | Anhui,China |
Brand Name | Huining |
Model Number | QYYEQNY |
Jacket | Lead/NBR |
Application | Power Cable |
Product name | Submersible Oil Pump Cable |
Type | Round |
Certification | API Specification Q1 |
Number of Conductors | 3 Cores |
Voltage | 6KV |
Temperature Range | 120C 150C |
Armor | Galvanized steel tape |
Application | Industria |
nsulation | EPR |
Brand name | Huining |
of cores | Nom. | No.of | Nom.Thickness | Nom.Thickness | Nom.Thickness | Outer dimension and weight (flat cable) | ||||||
3kV | 6kV | |||||||||||
3kV | 6kV | 3kV | 6kV | 3kV | 6kV | ≤mm | kg/km | ≤mm | kg/km | |||
3 | 16 | 1/4.62 | 0.8 | 1.0 | 1.0 | 1.0 | 2.0 | 2.0 | 32.0 | 2310 | 34.0 | 2495 |
3 | 20 | 1/5.19 | 0.8 | 1.0 | 1.0 | 1.0 | 2.0 | 2.0 | 34.0 | 2680 | 36.0 | 3000 |
3 | 33.5 | 1/6.54 | 0.8 | 1.0 | 1.0 | 1.0 | 2.0 | 2.0 | 36.0 | 2060 | 38.0 | 3310 |
3 | 42.5 | 1/7.35 | 0.8 | 1.0 | 1.0 | 1.0 | 2.0 | 2.0 | 38.0 | 3560 | 40.0 | 3770 |
Nom. | Nom.dia.of | D.C resistance of conductor | Insulation | Leakage current | Withstand D.C voltage for | ||
CrosS-section and | conductor | at 20℃ ≤Ω/km | resistance | (15.6℃ 15kV) | 5min | ||
wire | spec. | Un-tinned | 3kV | 6kV | |||
16 | AWG5 | 4.62 | 1.15 | 2000 | 12 | 27 | 35 |
20 | AWG4 | 5.19 | 0.814 | 2000 | 12 | 27 | 35 |
33.5 | AWG2 | 6.54 | 0.516 | 2000 | 15 | 27 | 35 |
42.5 | AWG1 | 7.35 | 0.405 | 2000 | 15 | 27 | 35 |
Product Name | Shape | Standard | Cross Section | Voltage |
|
| GB/T16750-2015 |
| 6KV |

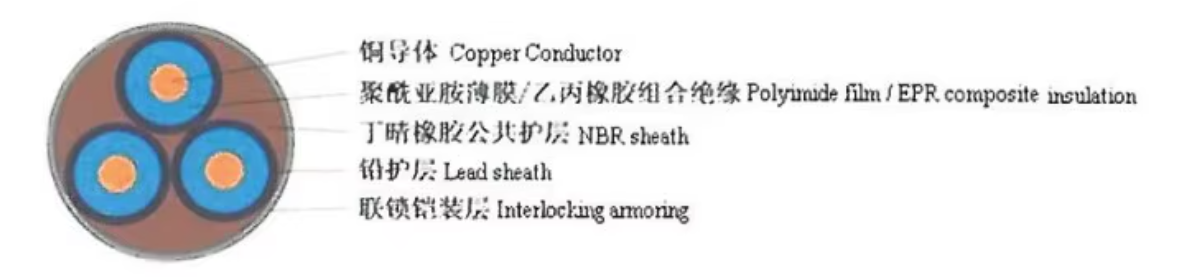

Insulation | Inner Sheath | Armor | Conductor | Certificate |
Polyimide/EPR | Lead/NBR | Galvanized steel tape | Copper | API Specification |
Packaging：
Material:

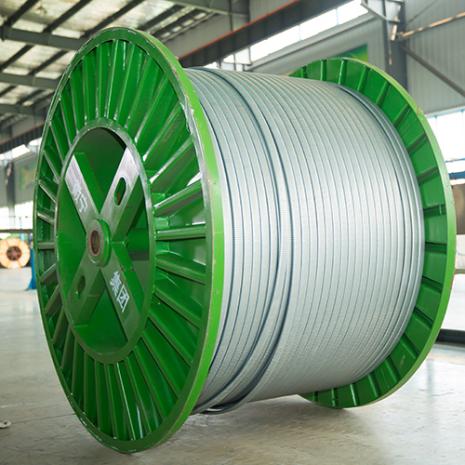

Steel/Wooden drum (fumigation)
Cable length in each drum: 500m/1000m or as per actual cable length requirements.
Drum size:
As per cable length and container size
To quote you an accurate price, kindly tell us your needed cable length quantity.
