Type QYPN Flat Electrical Submersible Pump Cable

The product is applicable to the flat power cable for electric submersible oil (submersible water and halogen element) pump at rated voltage up to and including 3.6/6kV. The lower end of flat power cable is connected to the submersible motor and the upper end of flat power cable is connected to the cabinet on the ground. Long-term operating temperature of conductor shall be 90 ℃. The cable has excellent features of oil, heat and corrosion resistant.The product is applicable to the flat power cable for electric submersible oil (submersible water and halogen element) pump at rated voltage up to and including 3.6/6kV. The lower end of flat power cable is connected to the submersible motor and the upper end of flat power cable is connected to the cabinet on the ground. Long-term operating temperature of conductor shall be 90 ℃. The cable has excellent features of oil, heat and corrosion resistant.

Quantity:
Availability:





Inquire Add to Basket

Model:
QYPN
Brand:
Huining Electric

Product Description

● Description:

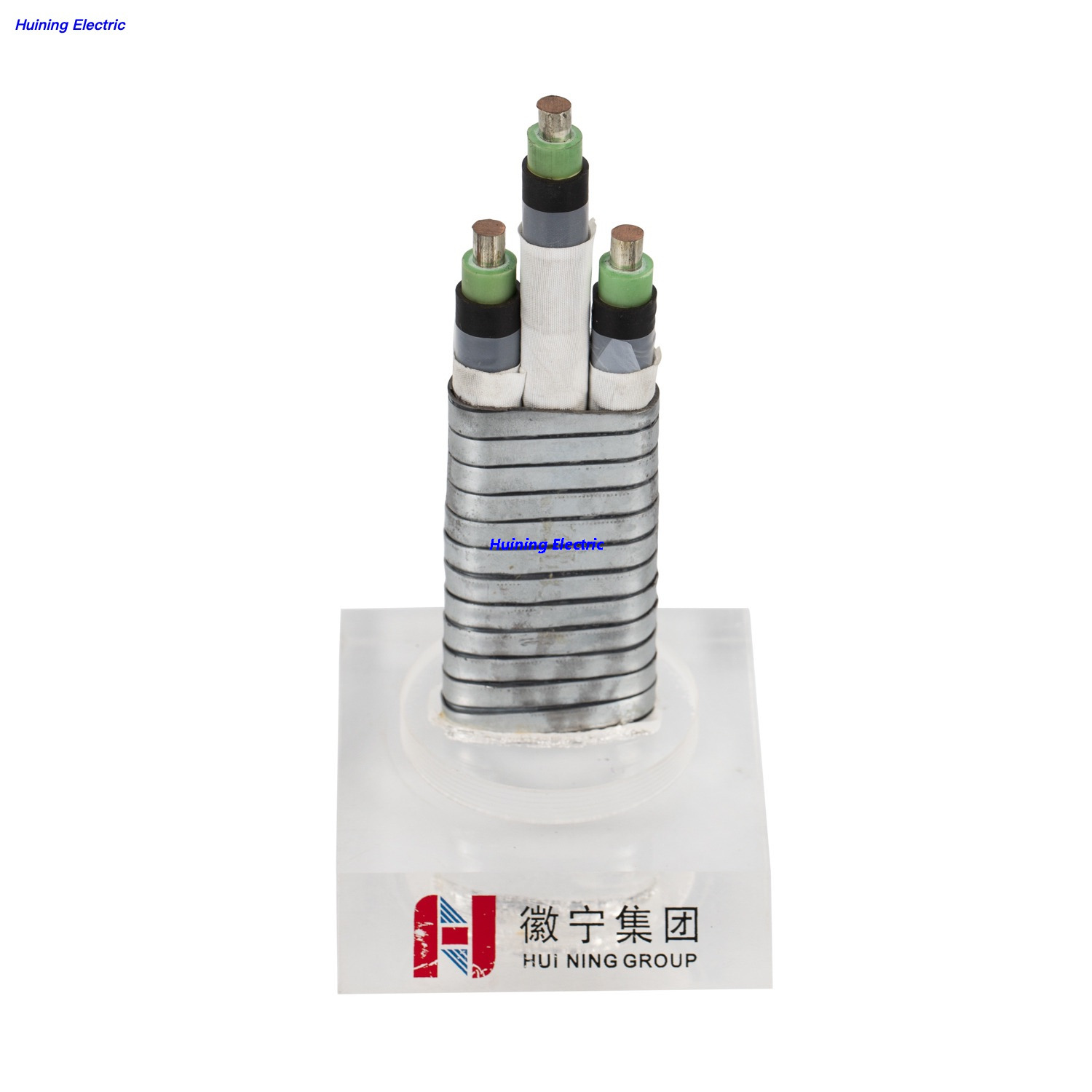

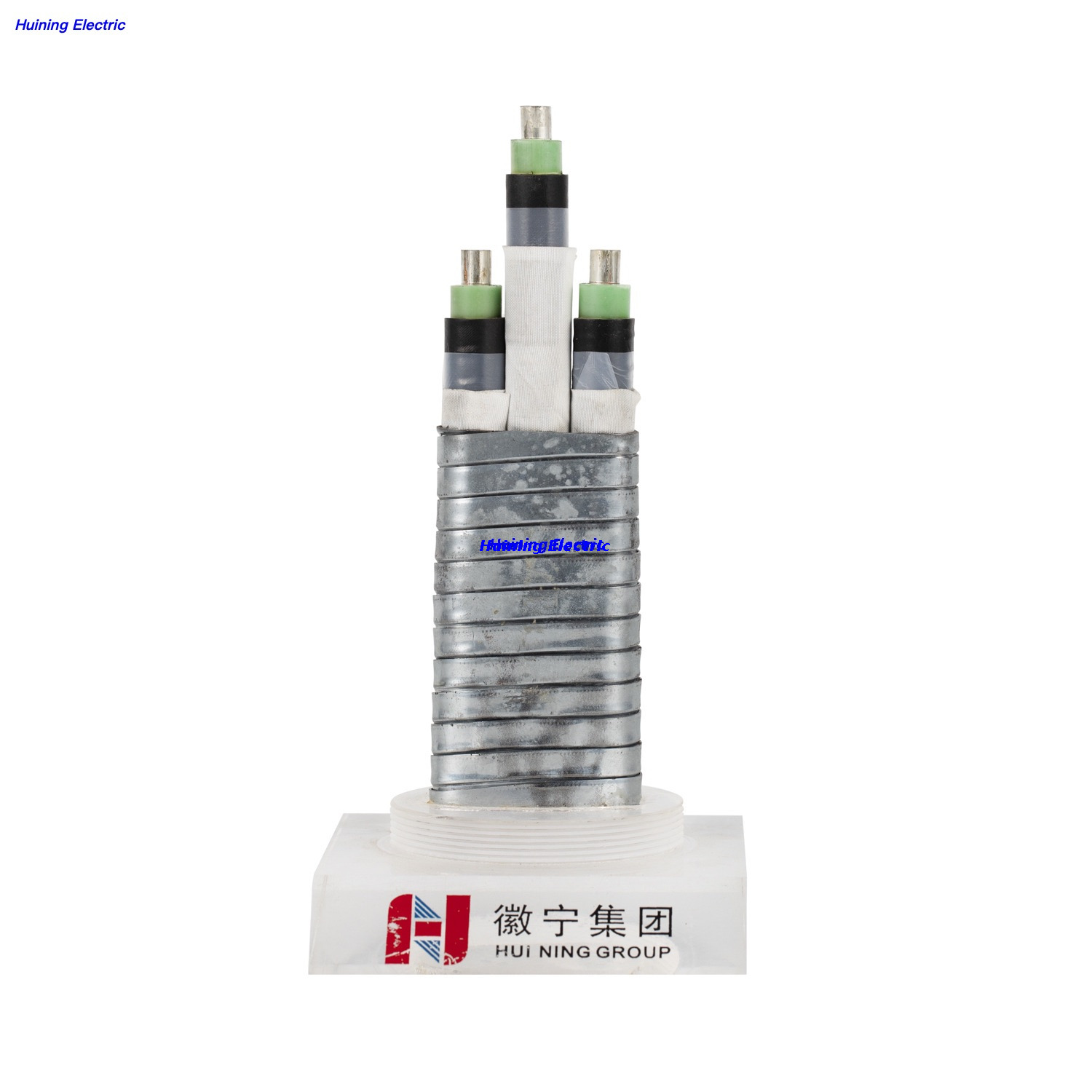

PP insulated, NBR sheathed, steel tape (galvanized, monel, stainless steel) interlocking armored flat power cable for submersible oil pump.

● Spec. and Parameters:

No. of cores	Nom. Cross-section mm²	No. of conductor/nom. Dia. of single wire	Nom. thickness of insulation mm		Nom. thickness of sheath mm		Outer dimension and weight (flat cable)
			Nom. thickness of insulation mm		Nom. thickness of sheath mm		3kV		6kV
			3kV	6kV	3kV	6kV	mm×mm	kg/km	mm×mm	kg/km
3	16	1/4.62	1.9	2.3	1.3	1.3	17×40	1280	18×42	1390
3	20	1/5.19	1.9	2.3	1.3	1.3	18×42	1450	19×44	1580
3	33.5	1/6.54	1.9	2.3	1.3	1.3	20×48	1650	21×50	1760
3	42.5	1/7.35	1.9	2.3	1.3	1.3	21×52	2160	22×54	2270
3	53	7/3.16	1.9	2.3	1.3	1.3	22×58	2670	24×60	2780

● Main Performance Indexes:

Nom. Cross-section and wire spec.	Nom. dia. of conductor mm	D.C resistance of conductor at 20℃ ≤ Ω / km		Insulation resistance at 20℃ ≥ MΩ·km	Leakage current （15.6℃ 15kV ） ≤ μA/km	Withstand D.C voltage for 5min
Nom. Cross-section and wire spec.	Nom. dia. of conductor mm	Un-tinned	Tinned	Insulation resistance at 20℃ ≥ MΩ·km	Leakage current （15.6℃ 15kV ） ≤ μA/km	3kV	6kV
16 AWG5	4.62	1.16	3000	12	27	35	16 AWG5
20 AWG4	5.19	0.839	3000	12	27	35	20 AWG4
33.5 AWG2	6.54	0.527	2500	15	27	35	33.5 AWG2
42.5 AWG1	7.35	0.418	2500	15	27	35	42.5 AWG1
53 AWG0	9.35	0.342	2500	15	27	35	53 AWG0

● Delivery requirements:

Cable shall be packed by steel corrugated drum. The min. order quantity could be 1000m.

● Notice of storage and shipment:

Cable shall be stored in indoor warehouse environment. The two ends shall be sealed in case of moisture. And, cable must not be collided with others during shipment.
